Azure Runbook – Connect to Microsoft Graph (Managed Identity)

# The following script demonstrates how to assign Microsoft Graph API permissions to a managed identity in Azure Automation using the Microsoft Entra PowerShell module.
# Target system managed identity: AzAutomationRed929
# Target API: Microsoft Graph
# Permission: User.ReadWrite.All
# Powershell 7 is recommended for the microsoft Entra module
$PSVersionTable.PSVersion
<# Install the required module before configuring service principal permissions with the following cmdlet:
 - Connect-Entra
 - Get-EntraServicePrincipal (Retrieves the managed identity and target API service principals)
 - New-EntraServicePrincipalAppRoleAssignment (Assigns the Graph app role to the managed identity) #>
 Install-Module -Name Microsoft.Entra -Repository PSGallery -Scope CurrentUser -Force -AllowClobber
 # Verify module is present
 Get-InstalledModule -Name Microsoft.Entra* | Where-Object { $_.Name -notmatch "Beta" } | Format-Table Name, Version, InstalledLocation -AutoSize
# To grant API permissions to managed identities, connect with the Application.ReadWrite.All and AppRoleAssignment.ReadWrite.All scopes:
# The following command will trigger device code flow
Connect-Entra -Scopes "Application.ReadWrite.All", "AppRoleAssignment.ReadWrite.All"

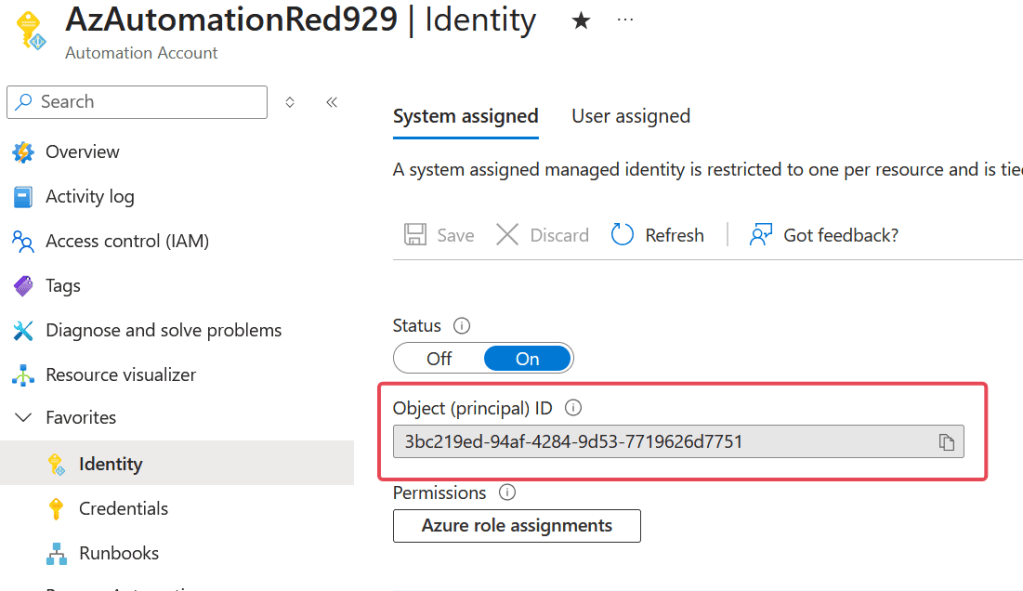

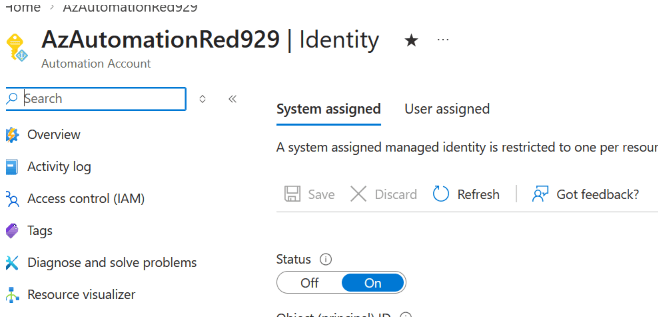

# Identify the managed identity service principal
# For system-assigned managed identities, use the Azure resource name; For user-assigned managed identities, use the managed identity name.

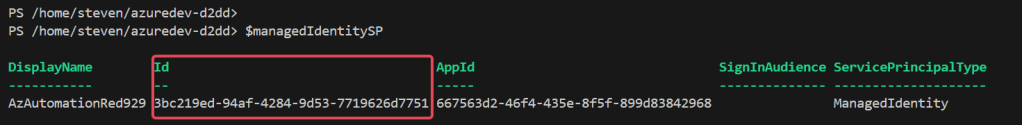

# The following command will get the Service principal ID of a SYSTEM managed identiy
$managedIdentityName = "AzAutomationRed929"
$managedIdentitySP = Get-EntraServicePrincipal -Filter "displayName eq '$managedIdentityName' and servicePrincipalType eq 'ManagedIdentity'"
if (-not $managedIdentitySP) {
    Write-Error "Managed identity service principal '$managedIdentityName' not found." -ErrorAction Stop
}
Write-Host "Found managed identity service principal:"
Write-Host "Display Name: $($managedIdentitySP.DisplayName)"
Write-Host "Object ID: $($managedIdentitySP.Id)"

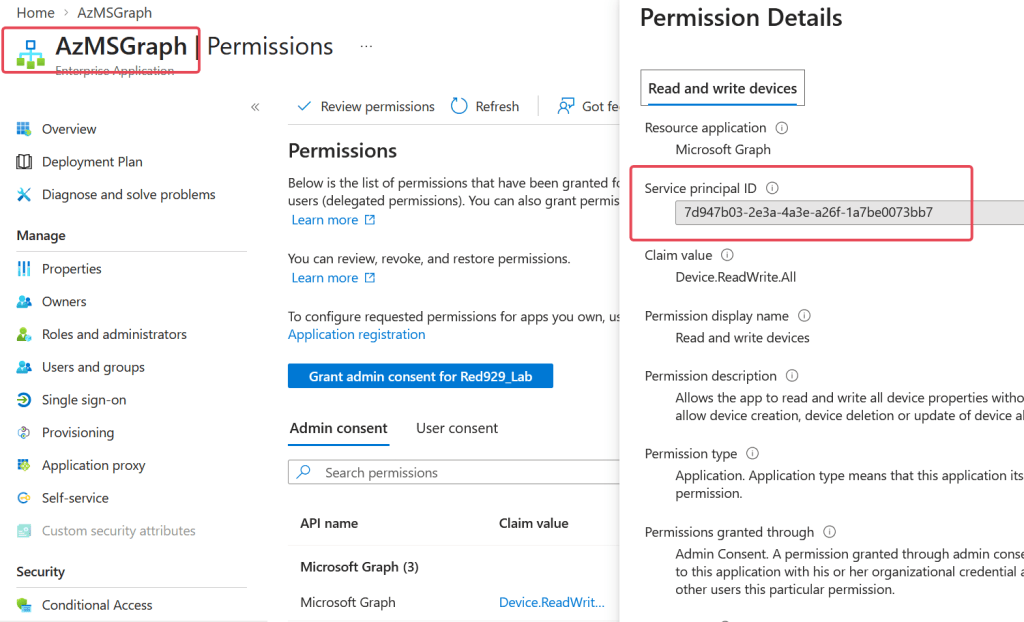

# This script targets the API permission for microsoft graph - so the local service principal ID is required for Microsoft graph.

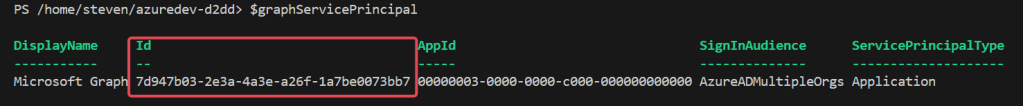

# The global unique app ID for MS graph across the tenant is "00000003-0000-0000-c000-000000000000". From there, query the local SP ID thats only unique for your own tenant.
$graphServicePrincipal = Get-EntraServicePrincipal -Filter "appId eq '00000003-0000-0000-c000-000000000000'"
# Identify the required API permissions (ex: User.Read.All, Device.ReadWrite.All, User.ReadWrite.All).
# The following will assign the permission to read and modify all users in entra for the managed identity
$appRole = $graphServicePrincipal.AppRoles | Where-Object { $_.Value -eq "User.Readwrite.All" }
# Grant API permissions to the managed identity with the details of
# 1) SP ID of managed identity
# 2) SP ID of the unique local SP ID of ms graph for tenant
# 3) The appropirate permissions necessary to perform task
$params = @{
    ServicePrincipalId = $managedIdentitySP.Id
    PrincipalId = $managedIdentitySP.Id
    ResourceId = $graphServicePrincipal.Id
    AppRoleId = $appRole.Id
}
$appRoleAssignment = New-EntraServicePrincipalAppRoleAssignment @params
# Verify the granted permissions
$assignments = Get-EntraServicePrincipalAppRoleAssignment -ServicePrincipalId $managedIdentitySP.Id
Write-Host "Current app role assignments for $($managedIdentitySP.DisplayName):"
foreach ($assignment in $assignments) {
    $resource = Get-EntraServicePrincipal -ServicePrincipalId $assignment.ResourceId
    $assignedRole = $resource.AppRoles | Where-Object { $_.Id -eq $assignment.AppRoleId }
    Write-Host "- Resource: $($resource.DisplayName)"
    Write-Host "  Permission: $($assignedRole.Value)"

}

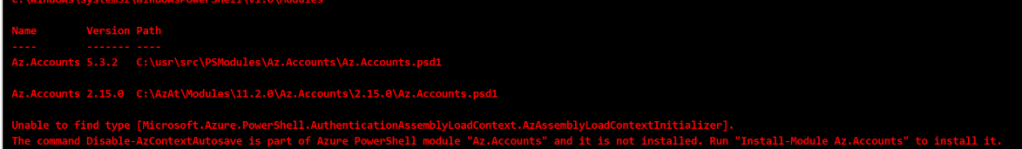

# Install the AZ.account module if it's not already installed from automation account blade
# From azure runbook:
# The following script will connect to app (AzMsGraph) that can access msgraph using an MSI (Managed system identity)
# This script is intended for Azure Runbook only not for hybrid worker group.
#######################################
# Load the following modules:
Import-Module Az.Accounts
#######################################
<# Ensures you do not inherit an AzContext in your runbook
By default, Azure PowerShell can automatically save your login context (subscription, tenant, account) so it persists across sessions.
Disable-AzContextAutosave turns that behavior off, meaning:
    • Your Azure login context will not be saved after the session ends.
    • You must re-authenticate when starting a new PowerShell session.
    • Useful for: Automation scripts, CI/CD pipelines, Secure environments, Shared machines #>

Disable-AzContextAutosave -Scope Process

<# Connect to Azure with system-assigned managed identity.
(-Identity) tells Connect-AzAccount to authenticate using a Managed Identity instead of:
Username/password, Service principal secret or Interactive login.
This works in environments like Azure VM (with system/user-assigned identity), Azure App Service, Azure Functions, Azure Automations #>

$AzureContext = (Connect-AzAccount -Identity).context

<# Set and store context.
Set-AzContext is a PowerShell cmdlet in the Az.Accounts module used to select the active subscription and tenant for your current Azure session in Microsoft Azure.#>

$AzureContext = Set-AzContext -SubscriptionName $AzureContext.Subscription -DefaultProfile $AzureContext
#######################################
# Connect to Ms graph as MSI
Connect-MgGraph -Identity

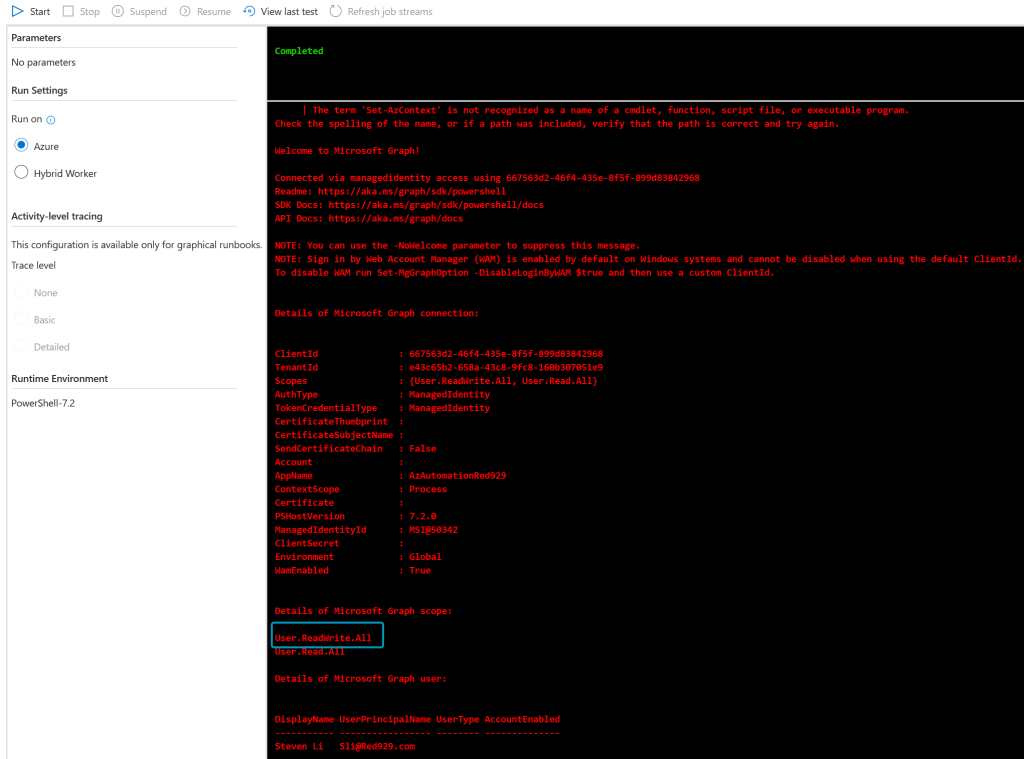

#List details on connection:
Write-Output "`nDetails of Microsoft Graph connection:`n"
Get-MgContext
# Verify current scope permission for MSI
Write-Output "`nDetails of Microsoft Graph scope:`n"
(get-mgcontext).scopes
# Get user details
Write-Output "`nDetails of Microsoft Graph user:`n"
Get-MgUser -UserId "sli@red929.com" | select DisplayName, UserPrincipalName, UserType, AccountEnabled
# Set user company name and then verify
set-entrauser -userID "Sli@red929.com" -companyName "Red929_Lab_X3"
Get-EntraUser -UserId "Sli@red929.com" | Select-Object DisplayName, UserPrincipalName, CompanyName
